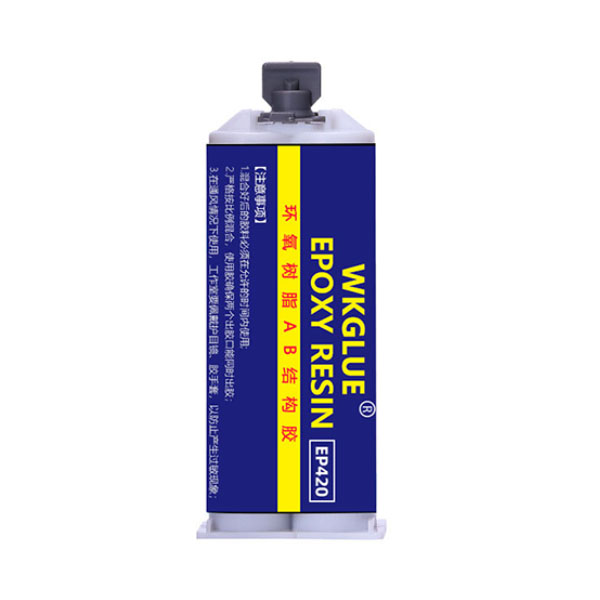

WKglues EP420 Flat 3M420 glue

WKglues epoxy structural adhesive EP-420 can replace 3M-420Product features:1. Toughened two-component epoxy structural adhesive, no formaldehyde, no VOC;2. Room temperature curing, operation time, easy to scrape;3. Excellent toughness and high bonding strength after curing;4. The cured material has...

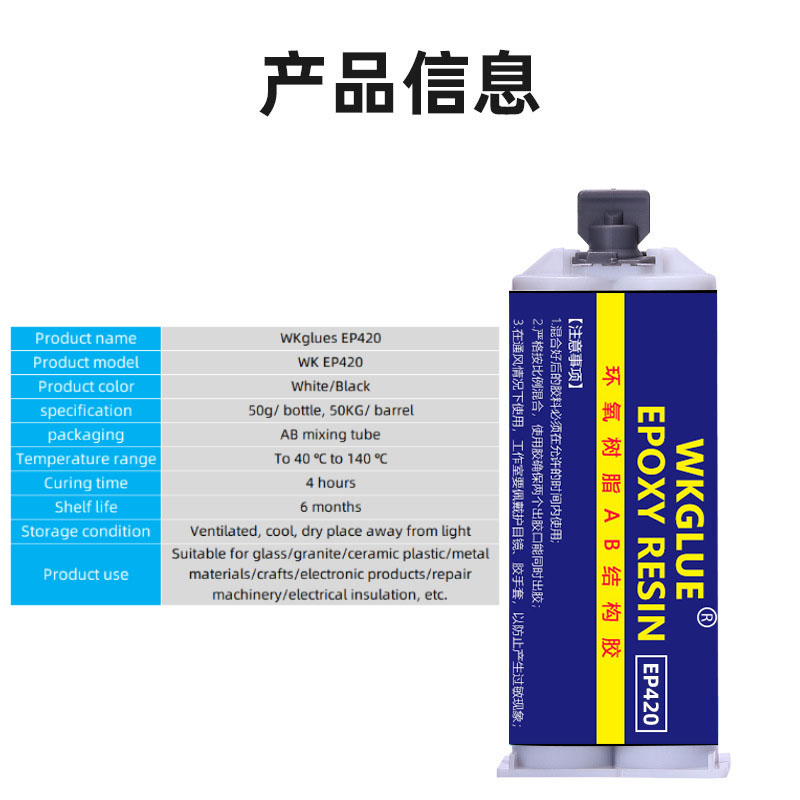

Basic parameters

Color: Transparent/Customizable

proportions: 1:1

Curing time: 25℃ 4h

Temperature resistance range: -40-140℃

Product TDS:

Application scope: Suitable for bonding and interbonding of metal, glass, ceramics, wood, composite materials, carbon fiber products, engineering plastics and other hard materials.

Product Description

WKglues epoxy structural adhesive EP-420 can replace 3M-420

Product features:

1. Toughened two-component epoxy structural adhesive, no formaldehyde, no VOC;

2. Room temperature curing, operation time, easy to scrape;

3. Excellent toughness and high bonding strength after curing;

4. The cured material has good acid and alkali resistance, good moisture, water, oil and dust resistance, resistance to moisture and heat and atmospheric aging;

5. The cured material has good insulation, compression resistance, high bonding strength electrical and physical characteristics;

Performance index		Component A	Component B
precure	Appearance	White and sticky	Amber thick
	Specific gravity (density) (25℃,g/㎝)	1.2-1.3	1.0-1.05
	Viscosity (30℃,CPS)	16000-19500	21000-24500
Operating performance	Component A: Component B (volume ratio)	100:50
	Mixed viscosity (cps)	18000-22000
	Operating time 25℃ (min)	60
	Curing time (25℃,H)	4
	Solid content (%)	99.9
After curing	Hardness (shoreD)	75-80
	Service temperature (℃)	-40℃-140℃
	Tensile strength	≥22Mpa
	Flexural strength	≥18Mpa
	Volume resistivity (Ω·cm)	≥1.35×10^15

How to use:

1. The surface of the bonded material should be free of ash and oil, clean and dry, and can be polished with emery cloth if necessary. Acetone wipe, the better the effect, the cleaner the bonding surface, the stronger the bonding force.

2. First install the rubber hose on the special glue gun, unscrew the rubber cap in front of the rubber hose, pull the trigger of the rubber gun to discharge the air in the rubber hose, so that the glue in the rubber hose is uniformly discharged, and then assemble the mixing tube.

3. Pull the trigger of the glue gun, evenly apply the glue on the surface of the adhesive, scrape it flat, then superimpose pressure, gel at room temperature for 35-60 minutes, and can be delivered 24 hours later.

Note:

It may cause skin discomfort. If it comes into contact with skin, remove it with soap and water. If it comes into contact with eyes, rinse with water.

If swallowed, seek medical attention immediately. It contains epoxy and polyamide resins.

Packing specification:

50ML/ PCS, 10 PCS/box

Storage and transportation

Stored at room temperature in a cool and dry place with a storage period of 12 months, such products are non-dangerous goods and can be transported as general chemicals；
